RCL-50B Searchlight

Model Number: RCL-50B / Part Number 1939.3

Designed for small- to mid-size pleasure craft and small commercial vessels, this rugged searchlight features the same salt water resistant construction as pricier models, along with the feature-rich Point Pad™ fingertip remote control (one included, up to three remote units may be installed).



Technical Specifications:

- Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- High-intensity 55-watt Halogen bulb
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes a fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
- Wiring harness 12-foot (3.65 m) length
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Application: Small to mid-size pleasure, small commercial craft


RCL-75 Searchlight

180,000 CD Remote-Controlled Searchlight (12V)

Model Number: RCL-75 / Part Number 1946

Destined to become the choice of small-craft professionals, this rugged workhorse features a redundant, dual halogen lamp design for incredible reliability.

Electronics are located in the water-resistant light head instead of the base for increased protection. The innovative "direct drive" system eliminates uncontrolled light movement in choppy conditions.

Technical Specifications:

- Application: Pleasure boats, sport yachts, sport fish and commercial vessels.
- Dual lamp design provides redundancy, reliability - works when you need it
- Bright, powerful 55-watt halogen bulbs with 3° h x 5° w beam spread
- Easy-to-install Point Pad™-style joystick control
- Robust, function-and feature-rich searchlight is easy to install
- 7-wire wiring harness, 17-foot length
- Electronics located in water-resistant light head, instead of traditional light base location, for protection from water accumulation
- 45° down pitch ocular design provides enhanced visibility when docking
- 18° up pitch to illuminate draw bridge towers, etc.
- Lamps easily replaced by removing top cap to access rear light assembly
- Desiccated filter dries air; protects reflector and light assembly
- Innovative "direct drive" system eliminates uncontrolled light movement in choppy conditions
- Heavy-duty gear teeth and electric motors
- Add an adapter and another Point Pad™ for remote, second station operation


RCL-100 LED Searchlight

220,000 CD Searchlight (12 to 24V) with Remote Control Options

Model Number: RCL-100 LED / Part Number 1950/1951

The LED version of our most popular RCL-100D searchlight provides high intensity LED performance that pierces through night and low lighting conditions with a blazing 220,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost effective choice for sport yachts, mega-yachts, sport fishers as well as light commercial vessels.  With more efficient LEDs, the RCL-100 LED now has reduced power consumption demand by up to 50% on 12V vessels.

Technical Specifications:

- Ultra bright, 9 LED array generates over 220,000 peak candela
- Efficient, long life LED’s - 40,000 operating hours
- Reduced power consumption demand by up to 50% on 12V vessels
- Controller has state-of-the-art electronics to protect light from most power surges
- Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
- Rugged triple-primed and sealed, marine grade aluminum housing
- Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
- Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Wiring harness of 15 feet (4.57 m)
- Two speed motor


RCL-100D Searchlight

200,000 CD Remote-Controlled Searchlight (12/24V)

Model Number: RCL-100D / Part Number 1930.3 or 1931.3

The RCL-100D's rugged marine-grade aluminium housing is equally at home on medium-size sport yachts/sport fish and commercial vessels.

Technical Specifications:

Application: Sport yachts, mega-yachts, sport fish and commercial vessels.
- Twin high-intensity 55-watt Halogen bulbs
- Controller has state-of-the-art electronics to protect light from most power surges
- Soft On and Off increases bulb life
- Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
- Rugged triple primed and sealed, marine grade aluminium housing
- Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
- Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Wiring harness of 15 feet (4.57 m)




RCL-300A Searchlight

1 Million* CD Remote-Controlled Searchlight (12/24V)

Model Number: RCL-300A / Part Number 1933

Twin, 35-watt, Metal Halide HID* lamps creates a narrow-beam searchlight perfect for large sport yachts, mega-yachts, large sportfish and commercial vessels. Easy to fit and retrofit to improve safety at sea during night operation, and simple to use with a commercial grade joystick with an IP 69K rating and illumination.


Technical Specifications:

- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
- Rugged triple-primed and sealed, marine grade aluminum housing
- XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Wiring harness included

* Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.

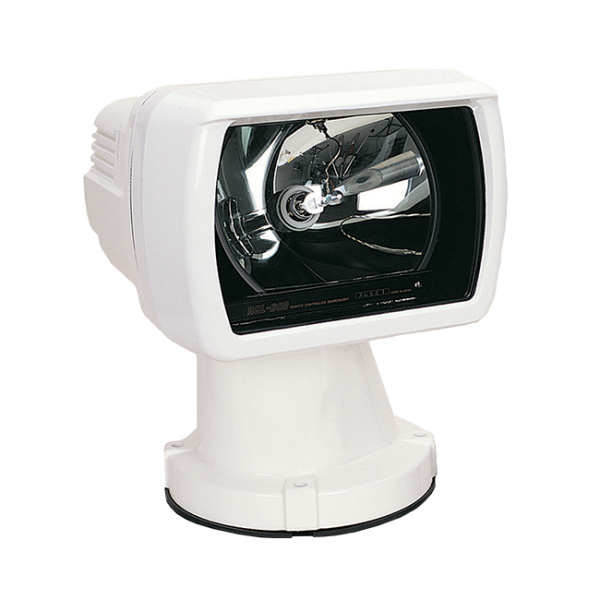

RCL-600A Searchlight

6 Million CD Remote-Controlled Searchlight (24V)

Model Number: RCL-600A / Part Number 1941

At 6 million candela, the top-of-the-line pierces the darkest night. Its high-intensity 150-watt Xenon bulb and parabolic reflector provides brawny power for commercial vessels, yet its aesthetic design meets all the requirements of large pleasure yachts. Switch easily from flood to spot, and aim precisely with the self-contained remote joystick.

Technical Specifications

- Aesthetically designed to meet performance requirements of large pleasure yachts
- Internal elevation mechanism provides pitch control of spotlight while protecting elevation mechanism from weather
- Xenon lamp and parabolic reflector provide hyper-intense 6,000,000 candela spotlight beam
-  Housing rotates a full 360 degrees allowing all-around illumination capability
- Auto return brings light back to a pre-set position
- Focus adjustment gives spot or flood capability
- Nylon shoulder washers insulate base plate when mounting, eliminating galvanic reaction of dissimilar metals
- Includes control panel with self-contained joystick remote
- Rugged weatherproof enclosure for years of reliable service
